Kraft Paper Sheetfed Flexographic Printing
Machine
To Print on Corrugation Paper / Kraft Paper /
Corrugated Sheet

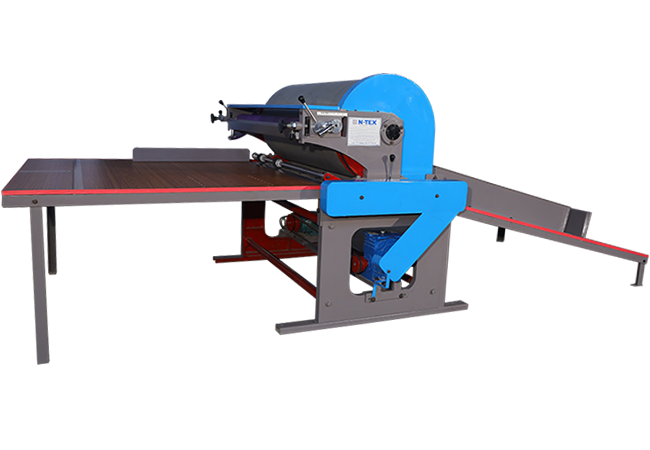

Kraft Paper Sheetfed Flexographic Printing
Advantages
- Easy interface of operation
- Fast drying of ink
- Smooth and noiseless running
- Minimum of wastage
- Almost zero maintenance
| Printing Capability | (W) X (L) |
|---|---|
| Maximum Paper Size | 52" x 72" |
| Printing Size | 50" x 70" |
| Other Available Paper Size | 502" x 82" / 62" x 88" OR Customised as per user specific requirements (at Extra Cost) |
Machine Specification
| Color | (W)X(L)X(H) | Power (3 Phase / 440v / 50 Hz) |
|---|---|---|
| 1 | 75" x 120" x 59" | 2 HP |
| 2 | 75" x 177" x 59" | 2 HP |
| 3 | 75" x 233" x 59" | 3 HP |
| 4 | 75" x 289" x 59" | 3 HP |
(All given dimension are approx)
Optional Accessories
- Control Panel - Electric & Electronics fitting controller
- Digital Actual Sheet counting meter
- Variable speed A.C / D.C drive system
- Anilox roll at each station for better resolution and superior printing
- Brush roll at each station for cleaning of stereo*
- Ink circulating system at each station for better viscosity
- Automatic drying arrangement with Instant Drying System
- DDC (don't dirty conveyer) system at each station to avoid printing rejection
- Advance counting system with measuring for operator efficiency
Note: *
- Requires Control Panel to operate the device/accessories.
- Shown accessories is not part of Standard Machine / equipments.
